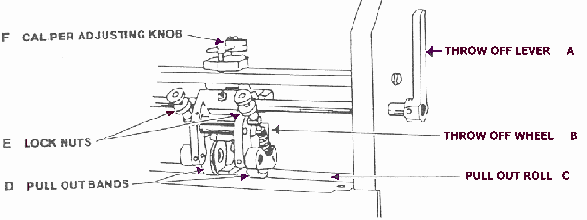

To adjust the caliper:

1. Turn the CALIPER ADJUSTING KNOB (F) clockwise three of four turns to raise the THROW OFF WHEEL (B) away from the PULL OUT ROLL (C).

2. Turn the folder on.

BE SURE HANDS, TOOLS, CLOTHING, ETC. ARE CLEAR OF THE FOLDER.

3. Turn the CALIPER ADJUSTING KNOB (F) counter clockwise until the THROW OFF WHEEL (B) starts to swing back and forth or kicks off.

4. Turn the CALIPER ADJUSTING KNOB (F) clockwise 1/2 turn, and reset the caliper by pulling forward on the CALIPER THROW OFF LEVER (A).

5. Run the sheet through. If the caliper trips on one sheet, turn the CALIPER ADJUSTING KNOB (F) clockwise another 1/2 turn, until the sheet travels under the caliper without moving the THROW OFF WHEEL (B).

Spring tension on the PULL OUT BANDS (D) should be set to have a light, even pull. The LOCK NUTS (E) should be tight, so the tension does not change.

If these items do not resolve the problem please contact our Technical Support group at 1-800-543-6107
