Setting the Fold Rolls and Fold Plates

BAUMFOLDER Fold Roll and Fold Plate - Setting
For models: Mark I, Ponys, Jr. Jet, 017, 400, 500, O&M, and Futura Series

To set the fold rolls and fold plates you will need the following gauges:

38334 Roll Gauge
01319 Plate Gauge
10978 Deflector Gauge

You will also need a protractor.

These gauges are available through our Parts Department at 1-800-543-6107 or 1-937-492-1281.

Use the following illustrations and tables for setting the fold rolls and fold plates:

CAUTION: ALWAYS FOLLOW THE MANUFACTURE'S SAFETY RECOMMENDATIONS WHEN ADJUSTING FOLDER SETTINGS

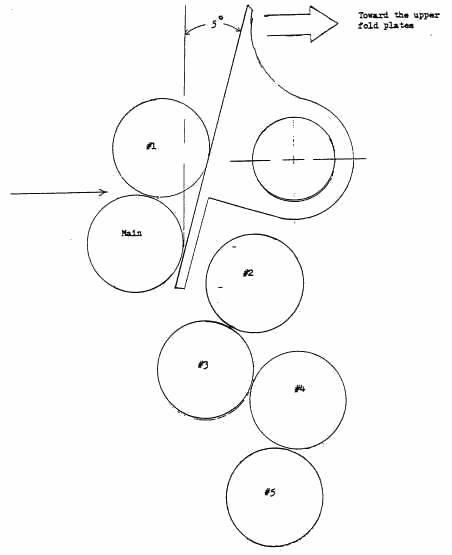

Figure 1

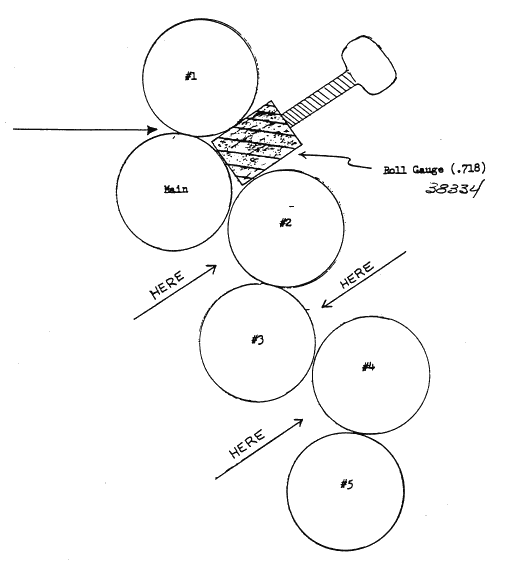

Figure 2

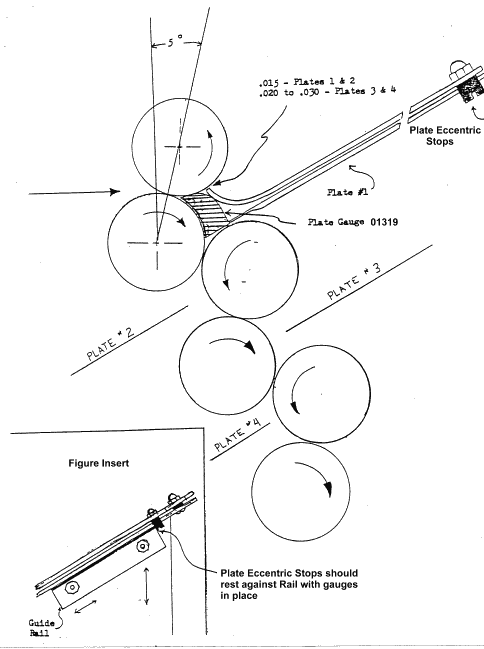

Figure 3

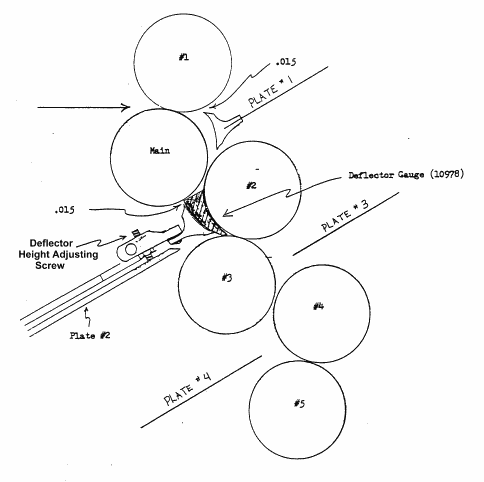

Figure 4

Plate & Deflector Settings

Parallel Section Parallel Deflectors

#1 Fold Plates .015 #1 .015

#2 Fold Plates .015 #2 .015

#3 Fold Plates .025 #3 .025

#4 Fold Plates .025 #4 .025

8-Page Section Fold Plates Deflectors

#1 Fold Plates .020 #1 .015

#2 Fold Plates .020 #2 .015

#3 Fold Plates .025 #3 .030

#4 Fold Plates .030 #4 .035

16-Page Section Fold Plates Deflectors

#1 Fold Plates .020 #1 .015

#2 Fold Plates .020 #2 .015

#3 Fold Plates .030 #3 .035

#4 Fold Plates .035 #4 .040

Parallel Section		Parallel Deflectors
#1 Fold Plates	.015		#1	.015
#2 Fold Plates	.015		#2	.015
#3 Fold Plates	.025		#3	.025
#4 Fold Plates	.025		#4	.025

8-Page Section Fold Plates		Deflectors
#1 Fold Plates	.020		#1	.015
#2 Fold Plates	.020		#2	.015
#3 Fold Plates	.025		#3	.030
#4 Fold Plates	.030		#4	.035

16-Page Section Fold Plates		Deflectors
#1 Fold Plates	.020		#1	.015
#2 Fold Plates	.020		#2	.015
#3 Fold Plates	.030		#3	.035
#4 Fold Plates	.035		#4	.040

If these items do not resolve the problem please contact our Technical Support group at 1-800-543-6107
